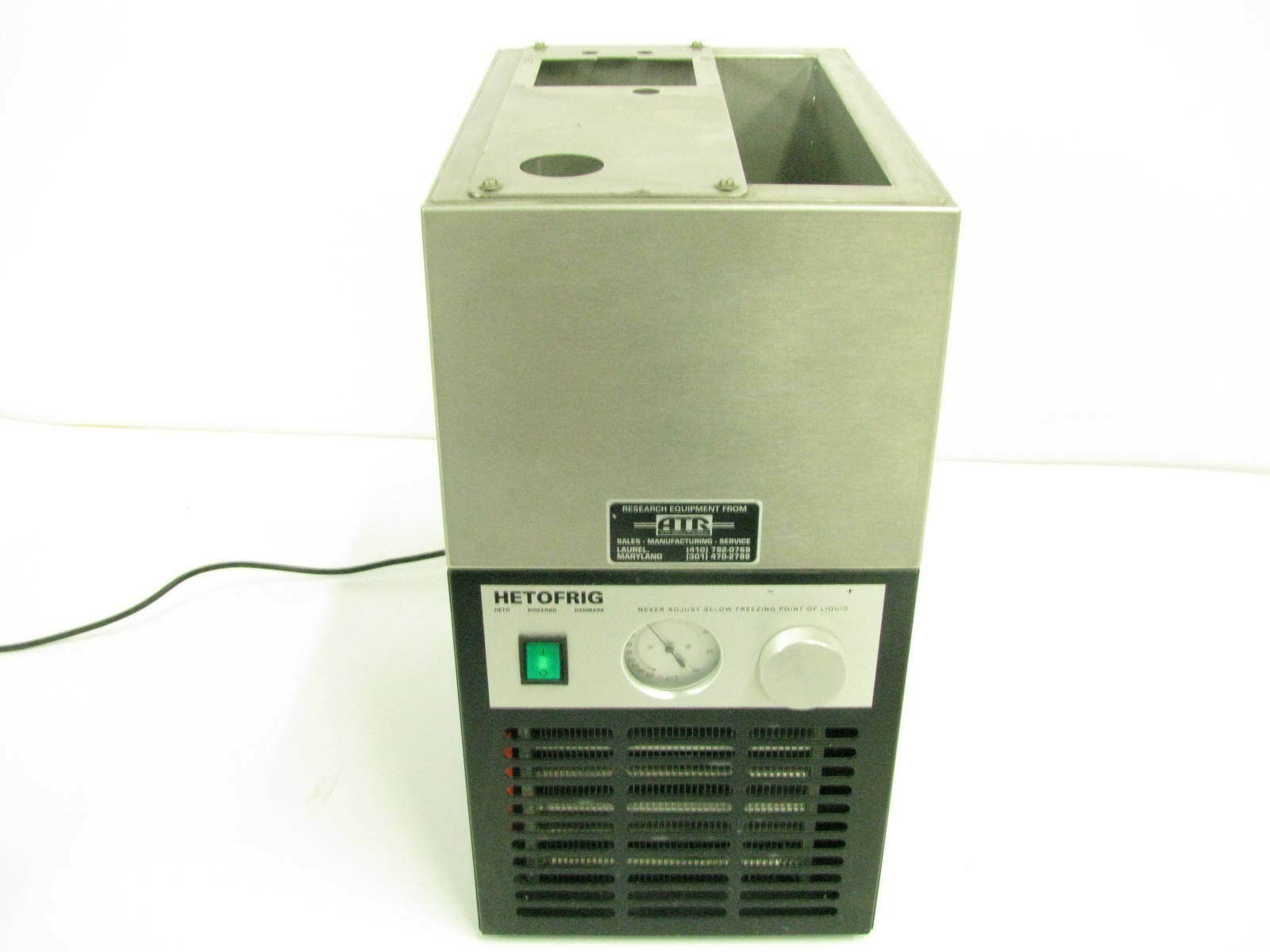

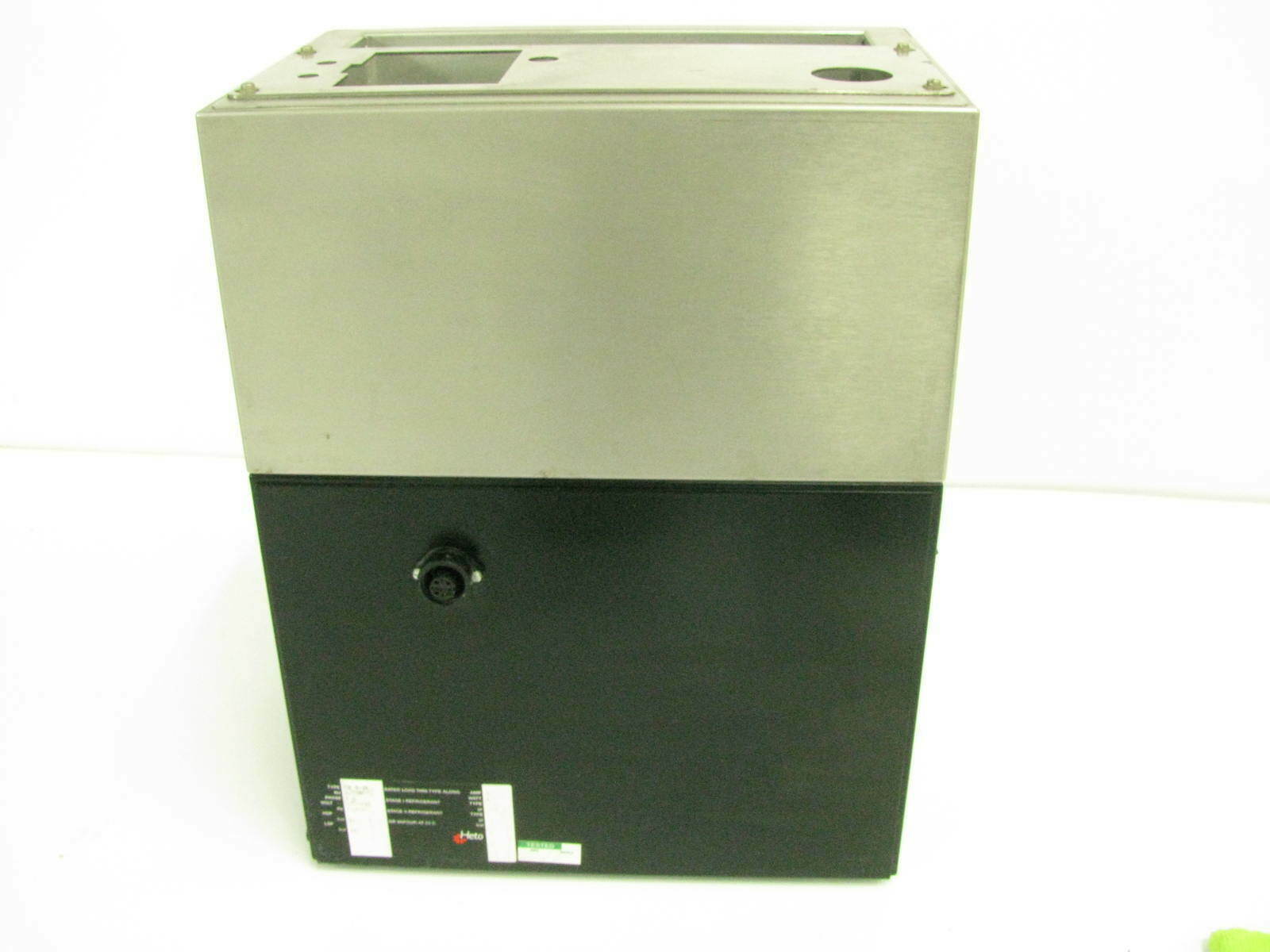

Heto Hetofrig Cooling Bath type CB 8-30

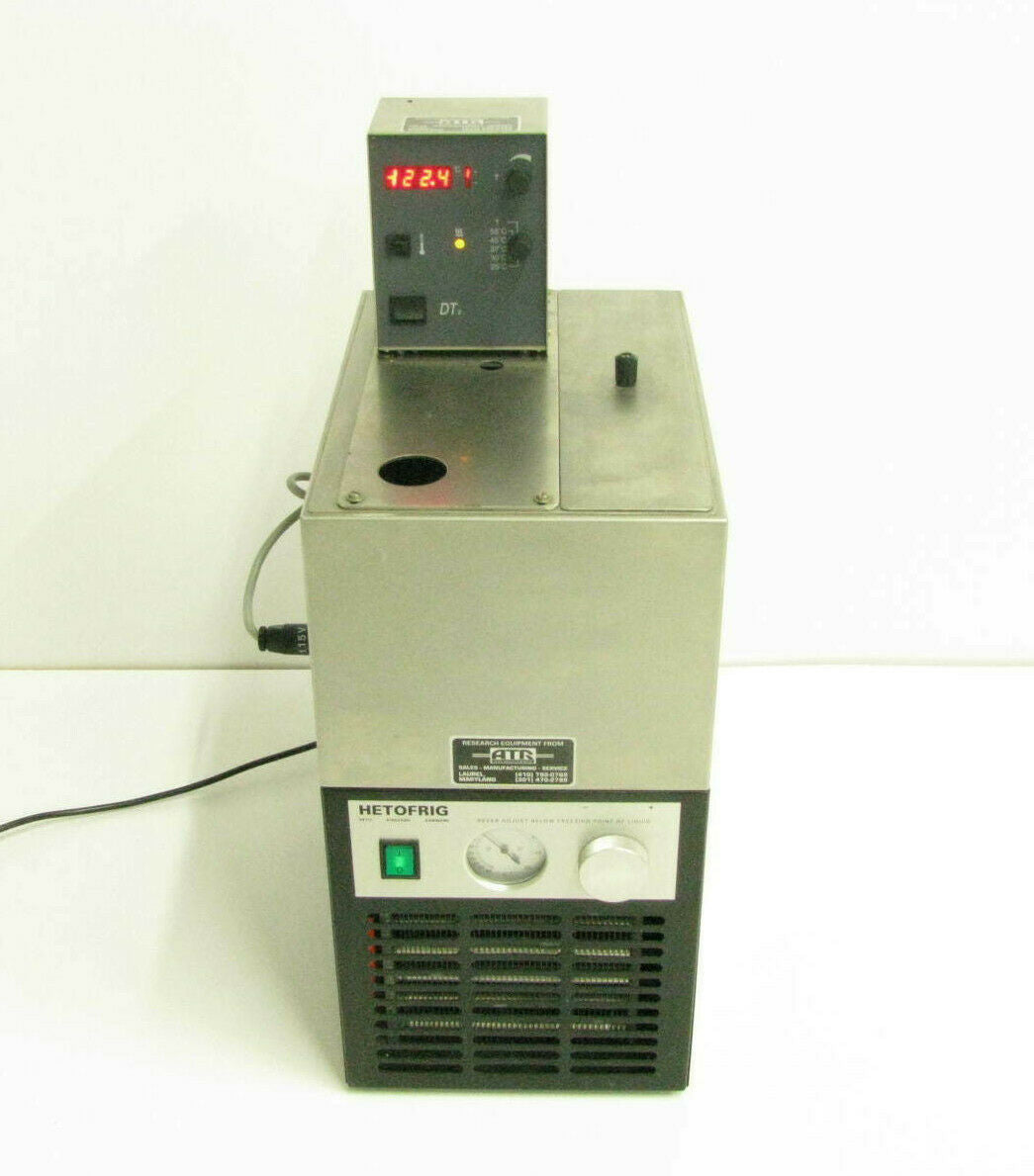

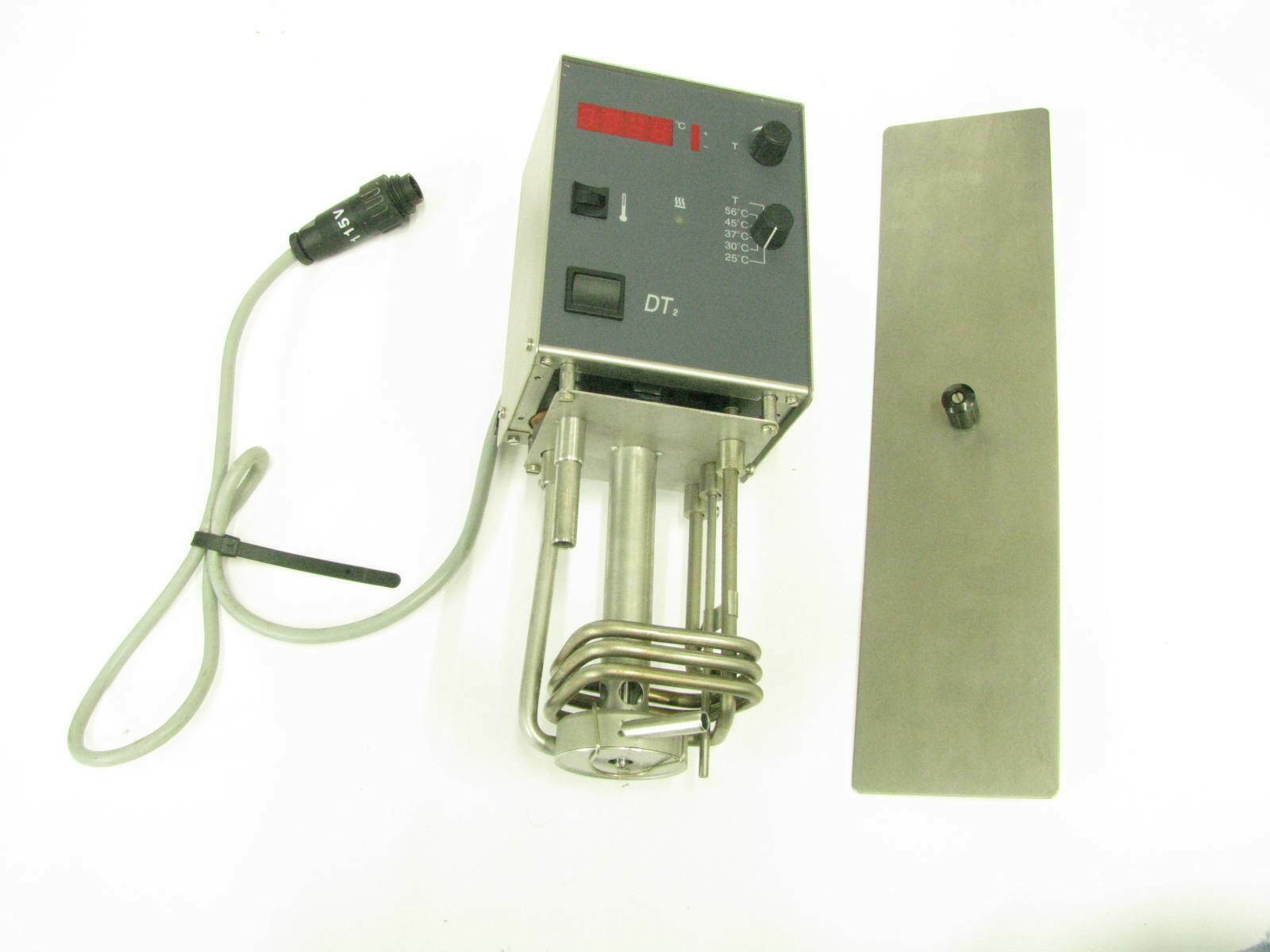

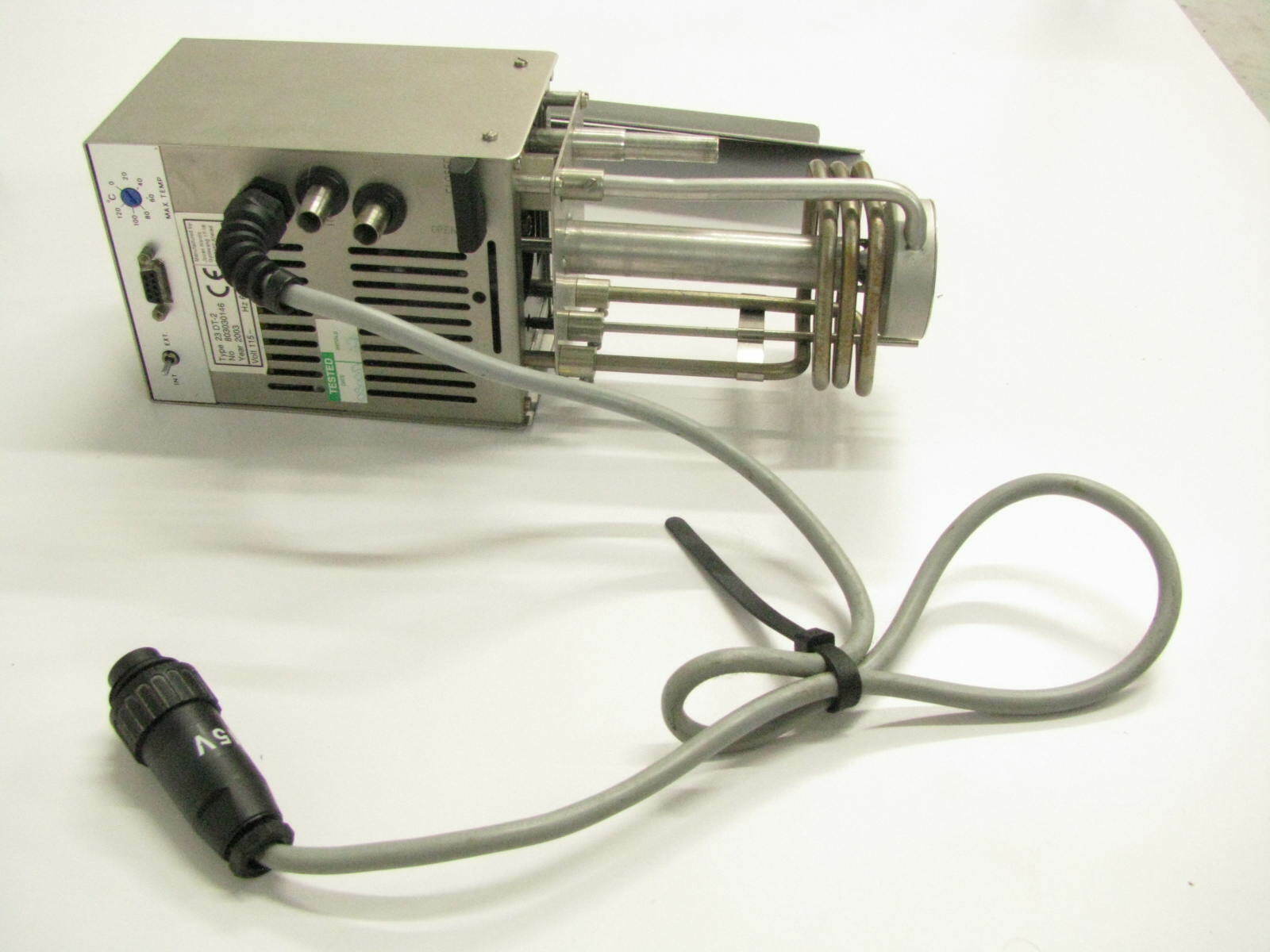

Both Heater and Main Cooling Bath Aspect Power on and Run
Free Shipping within the Continental US ONLY
Powers on, both cooling and heat aspects, runs
FREE SHIPPING ONLY WITHIN CONTINENTAL US
Typical applications
1. Freezing and cooling of tubes and flasks positioned directly in the bath even without a thermostat installed. An accessory rod for holding flasks and tubes is available.
This application should only be used with liquids that will not freeze, as the temperature is not regulated.
2. Freezing and cooling of small flasks and tubes.
3. Thermostating of other apparatus as e.g. photometers, by external circulation of the liquid,through a HETO THERMOSTAT.
4.Thermostating of other vessels by application of heat exchanger and extra stirring.
5. Pre-freezing for freeze drying.
6. An accessory spin-freezer is available.
7. Testing of viscosity in different media.
8. Cooling of materials for instance metals, for destructive material testing
Cooling bath CBN 8-30
with an operating range from -30 °C to +100 °C* continuously and up to+120 °C* for shorter periods, using appropriate liquids to maintain a good temperature stability.
*) Above ambient temperature only with use of heating thermostat
DxWxH [mm] 439x273x521
Weight [kg] 31
Required power supply [V / Hz] 230 / 50
Maximum Power consumption [W] 325
Insulation rate [mm] 50
Working Temperature Range [°C] -30 ..120 (100)
Liquid Volume [L] 8
Cooling Capacity at +20 °C 600
