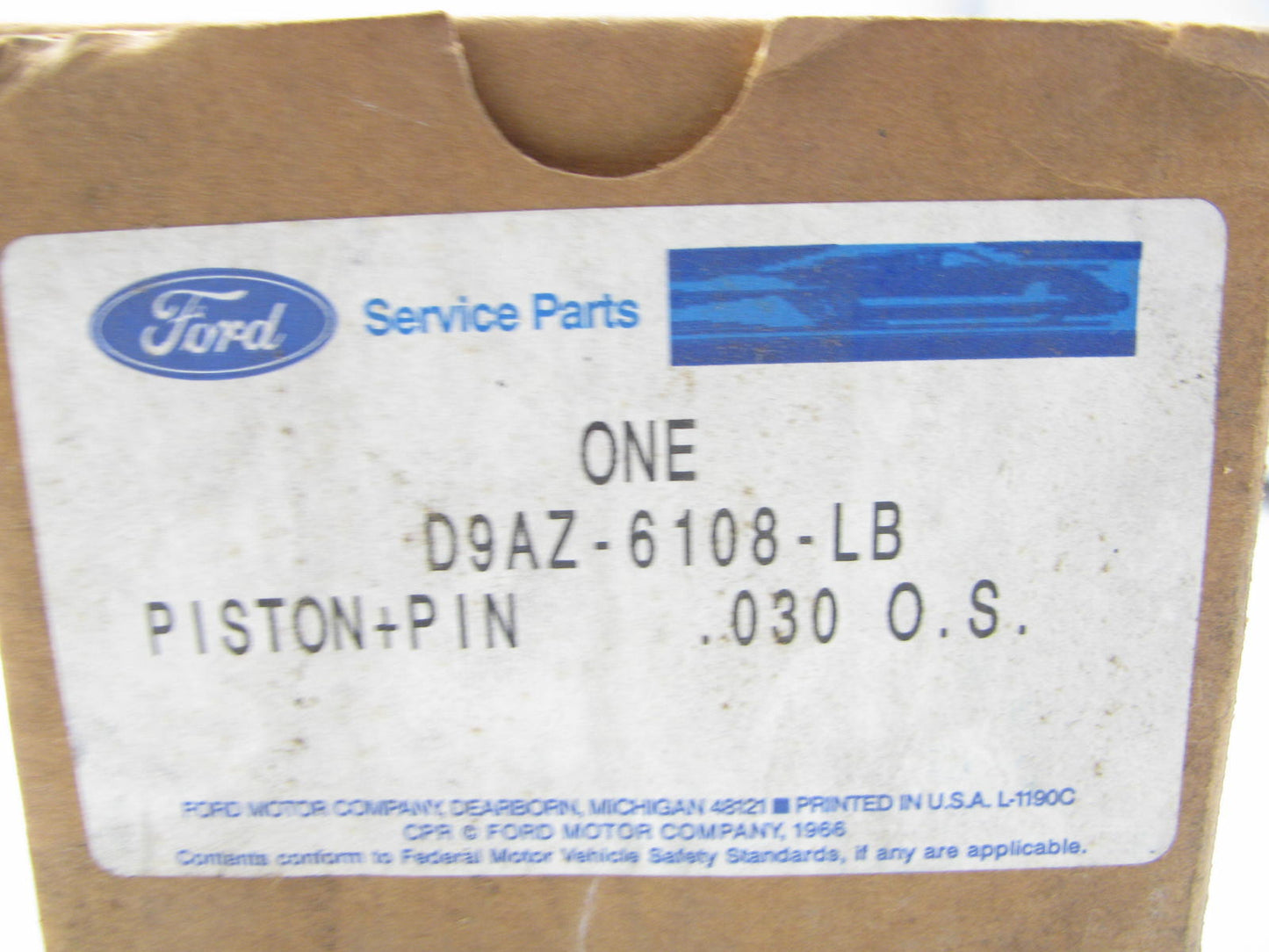

New Genuine OEM Ford Piston D9AZ-6108-LB Clevite 224-2040 STD 9-1171
New Genuine OEM Ford Piston D9AZ-6108-LB Clevite 224-2040 STD 9-1171
FORD D9AZ-6108-LB. Condition: New - Other.
Piston
1980-1992
Ford 351W (5.8L)
4.00'' Bore (Standard)
11.5cc Dish with 2 Valve Reliefs
1/pkg
Rings Not Included
Technical Specs:
Material: Aluminum
Bore: 4.00'' (101.6mm)
Piston Top: Rectangular Recessed Head w/2 Valve Reliefs; 0.105'' Recess Depth; 11.5cc Dish
Compression Height: 1.752''
Compression Ring Groove: 5/64''
Second Ring Groove: 5/64''
Oil Ring Groove Width: 3/16''
Full Length: 3.35'' (85.9mm)
Pin Size: 0.912'' O.D. (23.17mm)
Pin Type: Offset Location
Skirt Type: Non-Coated
Piston Skirt Clearance: 0.002''
Notes: Use Piston Ring p/n 695-40564CP (Rings Not Included)
Year Range and applicable VIN code: CAR - 1980-91 ''G'', 1969-79 ''H'', 1971-74 ''Q'', 1971-72 ''R'', 1969-71 ''M''; TRUCK - 1969-71 ''M'', 1972-74 ''Q'', 1969-79 ''H'', 1984-93 ''H'',
1980-85 ''G'', 1993 ''R''
